Our lifts are built for the most demanding environments

All of our motorized TV lifts are built to the most exacting standards, and are strong enough for use in the most demanding environments. For more than 20 years, Motivated Design has established an unmatched reputation for quality, reliability, and excellent customer service.


Compact

Our frames are the thinnest out there and ideal for areas with limited overhead space.

Tough

Our fold up models are made for the most demanding use. We use structural marine grade aluminum and stainless steel parts.

Lightweight

Our fold up lifts are lightweight - the 42" model (4" frame) weighs only 45 lbs - and are built to last.

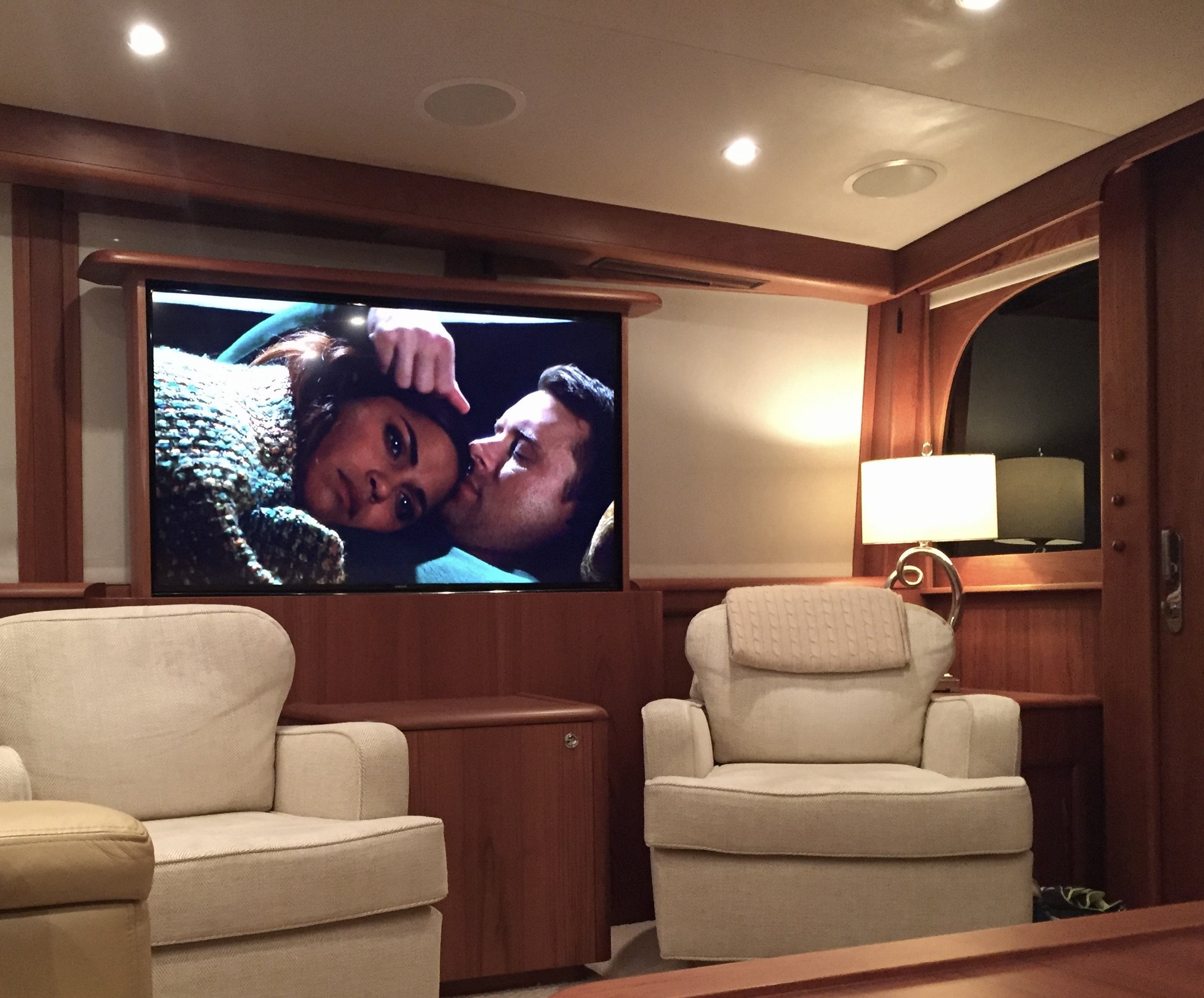

Our Fold Up TV Lift is perfect for any yacht and is our most requested lift by boat designers.

Our Fold Up or Fold Down TV lifts are uniquely designed and rather compact. Each lift is built with marine grade aluminum and stainless steel, for maximum durability and strength.

These lifts are fully Heli-arc welded and consist of an outer aluminum frame with stainless steel parts and fasteners that attach to the surrounding rough opening. 100% of the parts in our Fold Down TV lifts are CNC machined and beautifully powder-coated finish that guarantees outstanding precision, performance and quality.

Once installed, the lift allows for a Plasma or LCD TV to attach to a swing-arm operated by a counter- balanced & gear driven cam-lever system. Operating extremely quietly, the TV lift swings down for viewing and can be adjusted to swing back an additional 18 degrees for a proper viewing angle in any installation.

Built according to the strictest standards, with the most advanced technology available, the Fold Down TV lift is activated standard by a relay interface (Typically 12VDC or other voltage) input to deploy the mechanism. An IR interface can also be used. The lifts are light weight (42-inch model weighs only 45 pounds) yet built to last.

Fold Up Features

  • Structural marine grade aluminum
  • Heli-arc welded construction
  • CNC machined components
  • 115 volt motors with over-load protection (220 v optional)
  • 1.1 amp maximum current draw
  • Power outlet provided for TV hook-up
  • Equipped with a manual over-ride system
  • Simple relay interface 12vdc std. - 24 & 120vac switchable
  • Adjustable limit switch for viewing angle adjustment up to 18 degrees back
  • Rugged & marine capable duty # Palletized for shipment
